Trunking and Trunklinks
Reliable and aesthetic solutions to organize
and protect surface-mounted cables,meeting
Indian and international standards.
Cable Trunking and Trunklinks
Norpack trunking and trunklinks are manufactured from high-impact, plasticized polyvinyl chloride (PVC). Norpack Trunking solutions are engineered to withstand the toughest on-site conditions while meeting and exceeding rigorous Indian and International standards.Our
products conform to Indian Standard IS 14927 - Part 2 and BS EN 50085 -2-1.
Mini trunkings are effective in concealing and protecting surface mounted cables in an aesthetic manner. Maxi trunking is a mid-size feeder and distribution trunking that is designed for both convenience and safety, featuring compartments that can be subdivided for separate power and data wiring applications. Panel trunking is designed to provide optimal protection and organization for panel and machinery wiring under extreme conditions. This trunking system excels in environments that demand not only safety and durability but also cost-effectiveness and efficient space utilization.

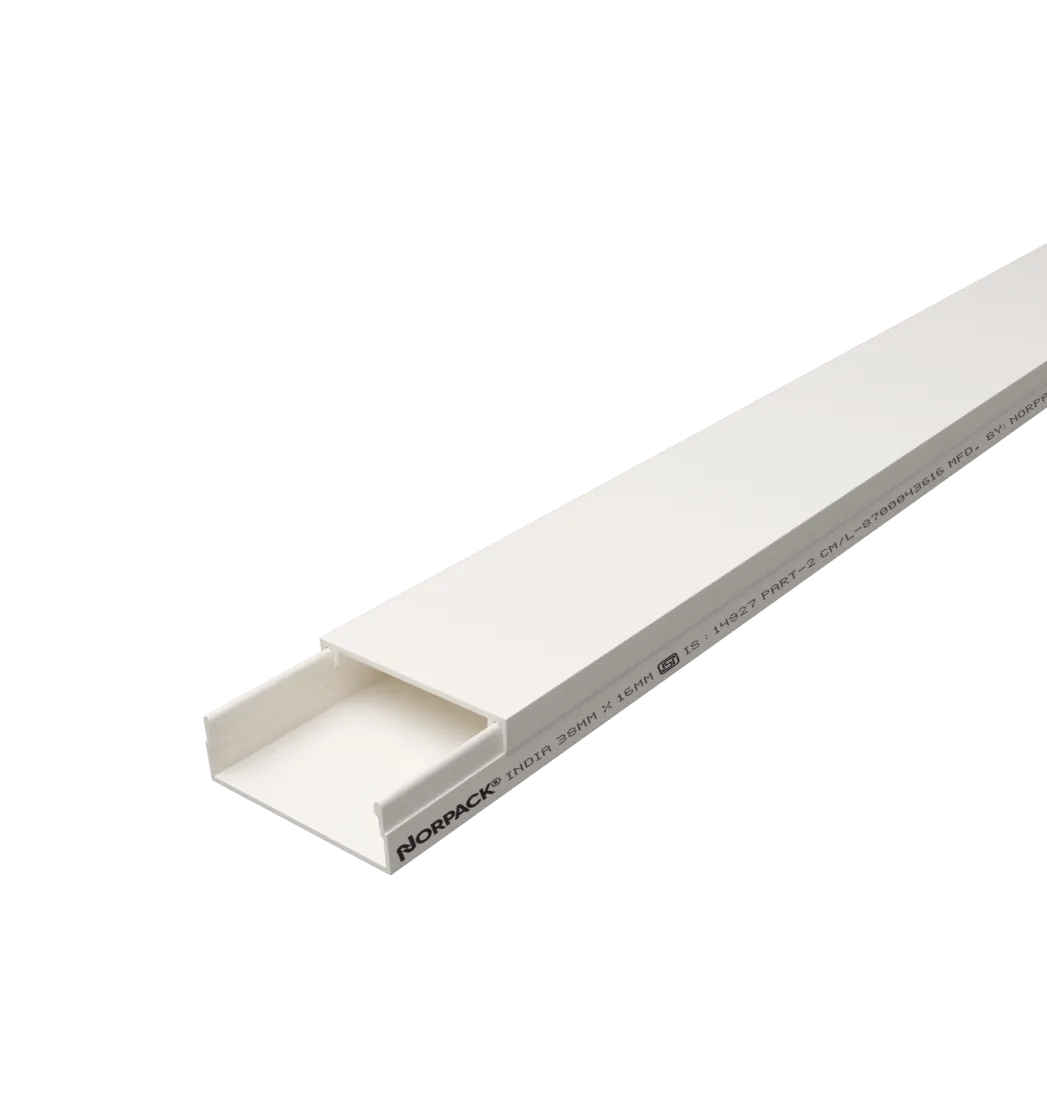

PVC Mini Trunkings (casing and capping)
Made from high-impact, polyvinyl chloride (PVC), our Mini Trunking profile & fittings are engineered to withstand the most challenging conditions. Meeting and exceeding standards set by IS 14927 - Part 2 and BS EN 50085 -2-1
Salient features
Lightweight and easy to handle
Durable and impact resistant
Fire retardant and UV stabilised
Easy and quick installation
Easy Accessibility for wiring and rewiring
Elegant look
Standard pipe length is 2m
Colors available
Ivory(other colours available)
Application
To organise and protect cables on the surface.
Ideal for concealing cables within residential.
industrial and commercial applications.
KNOW MOREDimension of PVC Mini Trunkings
| Size (in mm) | Out width (in mm) | Outer height (in mm) | Wall thickness (in mm) |
|---|---|---|---|
| 20 × 12 | 20.0+0.2 | 12.0+0.2 | 1.20 |
| 25 × 16 | 25.0+0.2 | 16.0+0.2 | 1.20 |
| 32 × 16 | 32.0+0.2 | 16.0+0.2 | 1.20 |
| 38 × 16 | 38.0+0.2 | 16.0+0.2 | 1.30 |
| 50 × 16 | 50.0+0.2 | 16.0+0.2 | 1.50 |
| S.No. | Product code | Nominal size (double lock) | Standard packing (Mtrs/Bdls) |
|---|---|---|---|
| 1 | NOR3001 | 20 × 12 mm | 200 |
| 2 | NOR3002 | 25 × 16 mm | 200 |
| 3 | NOR3003 | 32 × 16 mm | 200 |
| 4 | NOR3004 | 38 × 16 mm | 100 |
| 5 | NOR3005 | 50 × 16 mm | 100 |

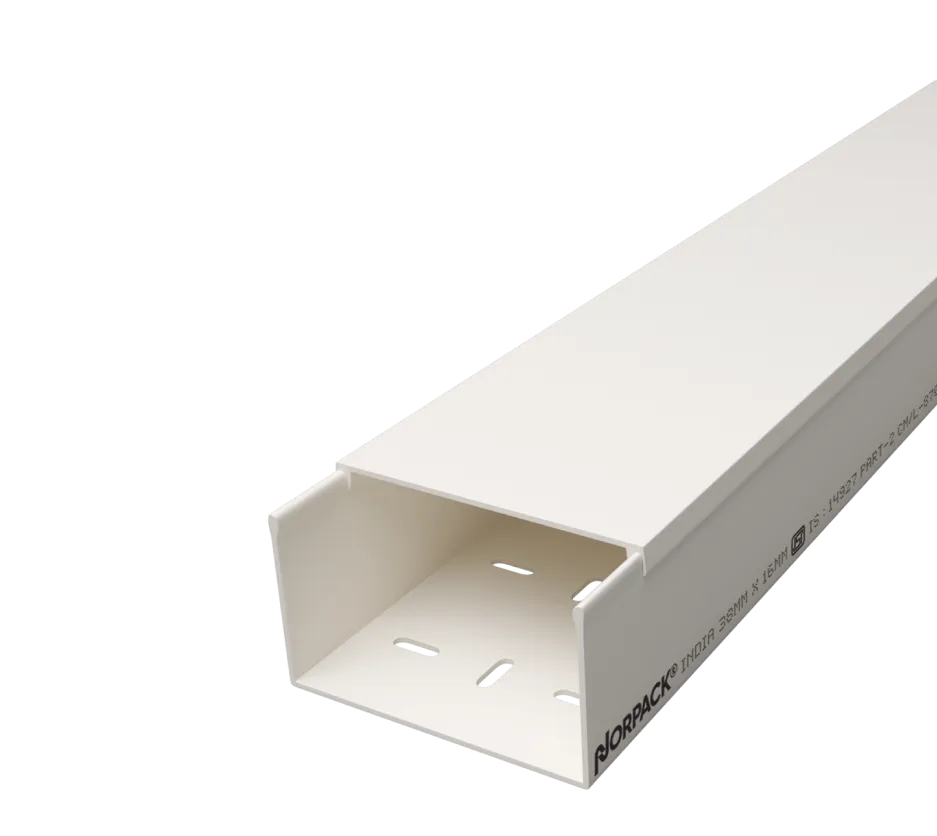

PVC Maxi Trunking (DLP ducts)
Norpack PVC Maxi Trunking Profile Cable Management System is made from high-impact, plasticised polyvinyl chloride (PVC) and designed for convenience and safety, with compartments for separate wiring applications. It is a mid-size feeder and distribution trunking that can be subdivided for power and data. It adheres to Indian Standard IS 14927—Part 2 and BS EN 50085 -2-1. Maxi Trunking profile fittings are available in moulded and fabricated forms, thus adding a sleek touch to your interiors.
Colors available
Ivory / Black Colour
Salient features
Durable and impact resistant
Large capacity
Fire retardant
Easy and quick installation
Easy accessibility
Standard pipe length is 2m
Application
To conceal & protect surface wiring in agricultural, commercial and industrial buildings that require larger cable-carrying capacity.

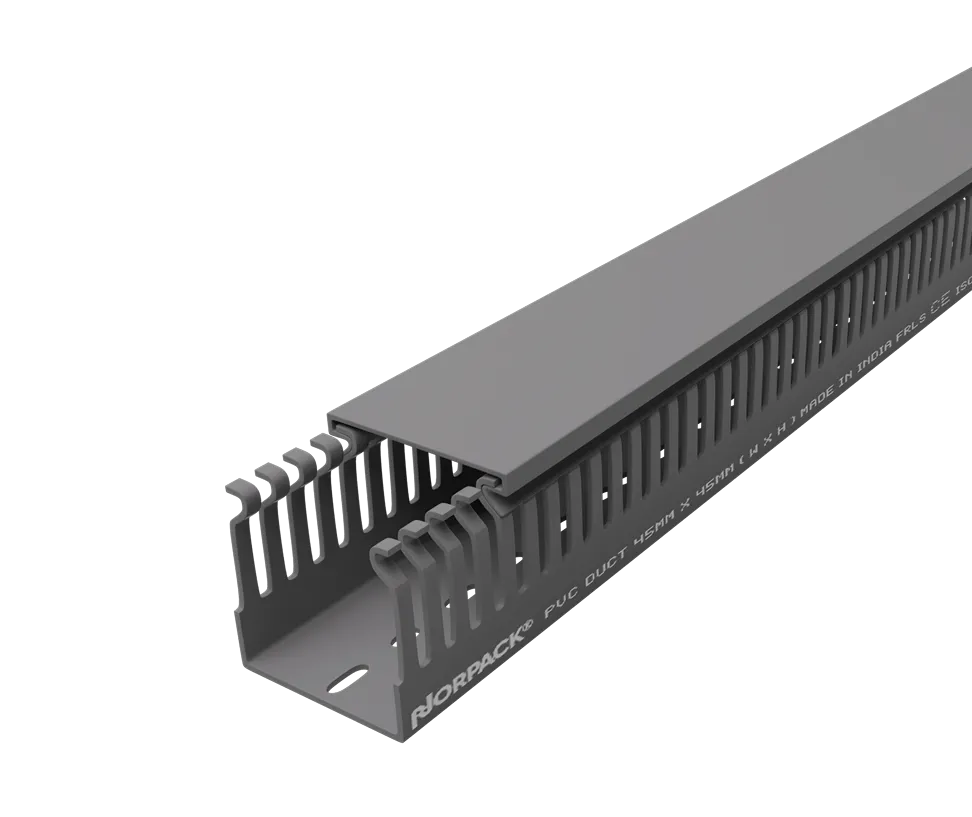

PVC Panel Trunking (wiring channel)
Norpak PVC Panel Trunking is manufactured from high-impact plasticised polyvinyl chloride (PVC) to ensure panel and machinery safety in extreme conditions. These trunkings are ideal for channelling medium and big size panels and various applications where economy, space-saving, safety, and durability are paramount.
Colors available
Grey
Salient features
Fire retardant
Thermal resistant (-5 to +60°C)
High tensile strength (390 kg/cm2)
Avoid bunching and taping of wires
Easy and effective cover grip
Systematic and faster connections, additions and fault tracing of wires
Standard pipe length is 1m
Standard and thin slotting available
Application
To conduct, organise and protect cables inside electrical and telecommunication panels, industrial machinery wiring, computer LAN wiring and data centre.
PVC TRUNKING COUPLER
PVC TRUNKING ELBOW
PVC TRUNKING BEND
PVC EXTERNAL BEND
PVC TRUNKING TEE
PVC JUNCTION LINKER
